Product Code:
55-160M

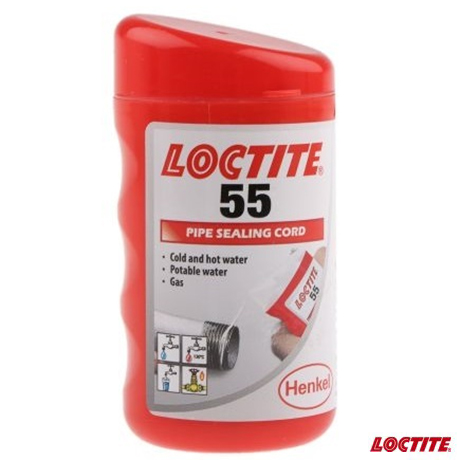

LOCTITE 55 PIPE SEALING CORD 150 METRE
LONG FOR COLD & HOT WATER ALSO GAS WIND
WIND ONTO THREAD WITH PRE TENSION
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
PRODUCT DESCRIPTION
LOCTITE® 55 PIPE CORD PROVIDES THE FOLLOWING PRODUCT CHARACTERISTICS:
TECHNOLOGY COATED MULTIFILAMENT THREAD CHEMICAL TYPE POLYAMIDE THREAD WITH INERT PROPRIETARY PASTE APPEARANCE WHITE COLORED, COATED CORDLMS CURE NOT APPLICABLE APPLICATION THREAD SEALING LOCTITE® 55 PIPE CORD? IS A GENERAL PURPOSE, THREADED PIPE AND FITTING SEALANT WHICH IS WOUND FROM THE DISPENSING PACKAGE ONTO THE THREADS OF THE PIPE. IT IS SUPPLIED IN CONTAINERS, WHICH SERVE FOR BOTH STORAGE AND DISPENSING PURPOSES. RECOMMENDED FOR SEALING METAL AND PLASTIC TAPERED PIPE THREADS AND FITTINGS UP TO 4" NPT (NATIONAL PIPE THREAD) FOR USE IN INDUSTRIAL APPLICATIONS IN AQUEOUS AND NON-AQUEOUS FLUIDS. PARTICULARLY SUITABLE IN THREADED ASSEMBLY APPLICATIONS THAT REQUIRE IMMEDIATE USE AND MAY UNDERGO SMALL READJUSTMENTS BEFORE USE. THIS PRODUCT IS TYPICALLY USED IN APPLICATIONS UP TO 149 °C. NSF INTERNATIONAL CERTIFIED TO ANSI/NSF STANDARD 61 FOR USE IN COMMERCIAL AND RESIDENTIAL POTABLE WATER SYSTEMS NOT EXCEEDING 82° C.
NOTE: THIS IS A REGIONAL APPROVAL. PLEASE CONTACT YOUR LOCAL TECHNICAL SERVICE CENTER FOR MORE INFORMATION AND CLARIFICATION. EN 751-2 SEALING MATERIALS FOR METALLIC THREADED JOINTS IN CONTACT WITH 1ST, 2ND, AND 3RD FAMILY GASES AND HOT WATER; PART 2: NON-HARDENING JOINTING COMPOUNDS.LOCTITE® 55 PIPE CORD? HAS BEEN TESTED AND CONFORMS TO EN 751-2 FOR A CLASS ARP COMPOUND AND CARRIES THE DVGW APPROVAL. WRC AND BGA KTW APPROVAL SUITABILITY OF NON-METALLIC PRODUCTS FOR USE IN CONTACT WITH WATER INTENDED FOR HUMAN CONSUMPTION WITH REGARD TO THEIR EFFECT ON THE QUALITY OF THE WATER. LOCTITE® 55 PIPE CORD HAS BEEN TESTED AND HAS POTABLE WATER APPROVAL TO BS 6920 AND ALSO MEETS THE SPECIFICATIONS OF THE WRC AND BGA KTW FOR BOTH COLD AND HOT POTABLE WATER. APPROVED BY THE AUSTRALIAN GAS ASSOCIATION CERTIFICATE NUMBER 6007 CLASS III RATED WORKING PRESSURE 2000 KPA, WORKING TEMPERATURE -10 TO 150°C.
NOTE: THIS IS A REGIONAL APPROVAL. PLEASE CONTACT YOUR LOCAL TECHNICAL SERVICE CENTER FOR MORE INFORMATION AND CLARIFICATION. TYPICAL PROPERTIES SPECIFIC GRAVITY @ 25 °C 1.25 FLASH POINT - SEE SDS COATING WEIGHT, G/M 0.54 TO 0.74LMS SPOOL WEIGHT, G: 12 METER SPOOL 7.0 TO 10.4LMS 50 METER SPOOL 27.3 TO 39.6LMS 100 METER SPOOL 54.0 TO 80.7LMS 160 METER SPOOL 86.4 TO 125.1 SPOOL LENGTH, M: 12 METER SPOOL 12.5 TO 14.0LMS 50 METER SPOOL 50.5 TO 53.5LMS 100 METER SPOOL 101.0 TO 109.0LMS 160 METER SPOOL 161.0 TO 169.0 LUBRICITY, ASTM D5648, K VALUE: 3/8 X 16 FASTENER, USING LOCTITE® 55 PIPE CORD 0.15 3/8 X 16 FASTENER (DEGREASED) 0.2 3/8 X 16 PHOSPHATE AND OIL NUTS AND BOLTS 0.16 (IN CRITICAL APPLICATIONS, IT IS NECESSARY TO DETERMINE THE K VALUES INDEPENDENTLY. HENKEL CORPORATION MAKES NO WARRANTY OF SPECIFIC PERFORMANCE ON ANY INDIVIDUAL FASTENER): TYPICAL PERFORMANCE OF APPLIED MATERIAL APPROVAL TESTS ACCORDING TO EN 751-2 FOR CLASS ARP COMPOUND: SOUNDNESS TEST, SECTION 7.2.1.2 NO LEAKS SOUNDNESS TEST AFTER 45° JOINT ADJUSTMENT, SECTION 7.2.1.3 NO LEAKS RESISTANCE TO GAS CONDENSATES, SECTION 7.2.1.4 NO LEAKS HOT WATER RESISTANCE TEST, SECTION 7.2.1.5 NO LEAKS TEMPERATURE CYCLING TEST, SECTION 7.2.1.6 NO LEAKS VIBRATION TEST, SECTION 7.2.1.7 NO LEAKS COMPATIBILITY WITH FOAM FORMING LEAK TESTER, SECTION 7.2.2 PASS TEST OF HARDENING AND DISMANTLING, SECTION 7.2.3 PASS PRESSURE RESISTANCE LOCTITE® 55 PIPE CORD? WAS SUCCESSFULLY TESTED FOR PRESSURE RESISTANCE AND SEALABILITY TO 69 MPA. 3/8 NPT STEEL PIPE TEES AND PLUGS WERE ASSEMBLED AND PRE-TORQUED TO 27 N·M PRIOR TO TESTING AT 69 MPA HYDRAULIC PRESSURE @ 23 °C ACCORDING TO ASTM D 1599. TYPICAL ENVIRONMENTAL RESISTANCE LOCTITE® 55 PIPE CORD? HAS RESISTANCE TO MOST COMMON INDUSTRIAL FLUIDS AND GASSES.
|
