Product Code:
TW3/8D-60NM
DIGITALTENSION WRENCH 3/8 DR 0.6-60 NM
FT LBS TO 44.25FT LBS INCH LBS 531 LBS
AA BAT-BUZZER& LCD-REVERSABLE-420MM LONG
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
THIS DIGITAL TORQUE WRENCH, EQUIPPED WITH QUICK RELEASE DESIGN, PROVIDES A FAST, EFFORTLESS WAY TO INSTALL/DISMOUNT VARIOUS SOCKETS. IT CAN BE USED TO FASTEN, CONTROL OR REMOVE BOLTS, SUITABLE FOR AUTOMOBILE, MACHINERY, ETC.
FEATURES:
HIGH QUALITY MATERIAL: THE WHOLE IS MADE FROM SOLID DURABLE METAL RATCHET HEAD, NON-SLIP, COMFORTABLE GRIP ABS HANDLE.
CW & CCW: IT ALLOWS TO OPERATE AND MEASURES TORQUE IN CLOCKWISE & COUNTERCLOCKWISE DIRECTIONS(ACCURACY: ±2% CW, ±2.5% CCW).
DIGITAL DISPLAY: LCD SCREEN CAN SHOW REAL-TIME TORQUE VALUE, INSTANTLY CONVERT BETWEEN FOUR DIFFERENT MEASUREMENTS (N.M, IN.LB, FT.LB, KGF.CM).
MORE FUNCTIONS: PEAK & REAL TIME MODE, AUTO-OFF AFTER 5 MINS NON-WORK FOR ENERGY SAVING, LCD & BUZZER ALARM AT TORQUE'S REACHING PRESET VALUE.
SPECIFICATIONS:
MATERIAL: ABS + ELECTRONIC COMPONENTS
COLOR: BLACK & ORANGE
MIN. SCALE VALUE: 0.01
RANGE: 0.6-60N.M
MAX. TORQUE RANGE: 60N.M / 44.25FT.LB / 531.04IN.LB / 611.82KGF.CM
DRIVE SIZE: 3/8 INCH
INTERCHANGEABLE HEAD CONNECTOR SIZE: 9*12
SETTING RANGE OF BUZZER: 3-60N.M
LENGTH: 420MM
ACCURACY: ±2% CLOCKWISE, ±2.5% COUNTERCLOCKWISE
MEMORY: 99 SETS DATA
PEAK/REAL TIME MODE: YES
AUTO SHUT-DOWN: YES
ALERT TYPES: BUZZER / LCD
UNIT: N.M, IN.LB, FT.LB, KGF.CM
HEAD TYPE: REVERSIBLE RATCHET HEAD
TEETH NUMBER OF RATCHET HEAD: 36
POWER SUPPLY: 2 * AA BATTERY (NOT INCLUDED)
OPERATING TEMPERATURE: -10?~60?
STORING TEMPERATURE: -20?~70?
PRODUCT WEIGHT: 867G / 30.58OZ
PACKAGE SIZE: 47*12.5*6CM / 18.50*4.92*2.36IN
PACKAGE WEIGHT: 1560G / 55.02OZ
NOTE:
DIGITAL TORQUE WRENCH SET ONLY, OTHER ACCESSORIES IN THE PICTURES ARE NOT INCLUDED.
PLEASE READ THE USER MANUAL CAREFULLY FOR MORE INFORMATION BEFORE USAGE.
DUE TO LIGHTING OR OTHER REASONS, THE PICTURE AND MATERIAL OBJECT MAY SLIGHTLY DIFFER.
DUE TO MANUAL MEASUREMENT, THERE MAY BE DEVIATION, PLEASE IN KIND PREVAIL.
PACKING LIST:

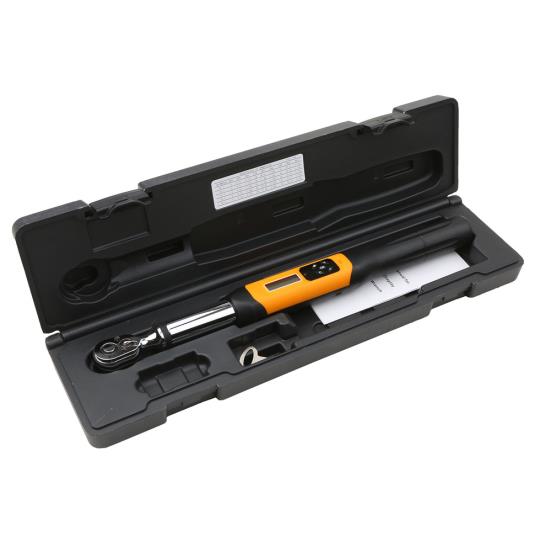

1 * DIGITAL TORQUE WRENCH
1 * PLASTIC CASE
1 * KEY FOR BATTERY COMPARTMENT
1 * USER MANUAL
