Product Code:
EWM-75

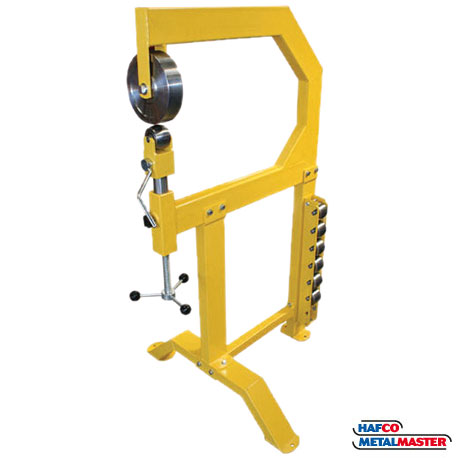

ENGLISH WHEEL WITH 705MM THROAT CAPACITY
MILD STEEL CAPACITY 1.6MM- FLOOR MOUNTED
COPPER & ALUMINIUM CAPACITY 2MM.
|
|
|
|
|
|
|
 |
|
|
|
DESIGNED TO ALLOW CRAFTSMEN TO FORM SMOOTH CURVES FROM FLAT SHEETS OF METAL. THEY ARE MAINLY USED IN CAR, MOTORCYCLE, AVIATION AND RACING CAR CONSTRUCTION OR RESTORATION WHERE SHEET METAL PANELS NEED TO HAVE COMPOUND CURVES FORMED.
THE OPERATOR PASSES THE SHEET METAL BETWEEN THE ANVIL WHEEL AND THE ROLLING WHEEL. THIS PROCESS STRETCHES THE MATERIAL AND CAUSES IT TO BECOME THINNER. AS THE MATERIAL STRETCHES, IT FORMS A CONVEX SURFACE OVER THE ANVIL WHEEL.
THIS HEAVY DUTY STEEL FABRICATED MACHINE HAS A LARGE 705MM THROAT WHICH ALLOWS A CAPACITY OF 1.6MM FOR MILD STEEL AND 2MM FOR COPPER AND ALUMINIUM.
SUPPLIED WITH A 203MM DIAMETER BY 50MM WIDE TOP ROLLING WHEEL AND HEAT TREATED FLAT + 50, 76, 101, 152, 203, 254MM RADIUS BOTTOM ANVILS AND EASY ACCESS STORAGE HOUSING.
FEATURES :
- TOP ANVIL Ø200 X 50MM
- FLAT + 50, 76, 101, 152, 203, 254MM RADIUS DIES
- BOTTOM DIES ARE HEAT TREATED
- FOUR BOLT HOLES TO BE EASILY SECURED TO FLOOR.
|
