Product Code:
TRAIL8X5GSA2

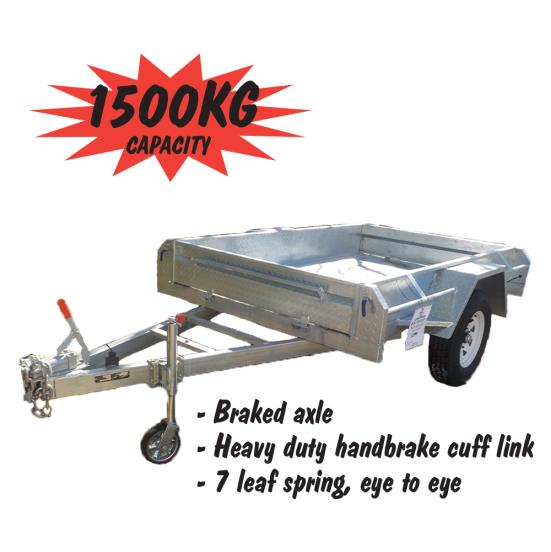

TRAILER 8X5 GALVANISED FULLY WELDED ATM
A BIG 1500KG- 7 LEAF EYE TO EYE LEAF
SPRING SUSPENSION-BRAKED AXLE -14" WHEEL
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
WELBILT BRAND TRAILER HOT DIPPED GALVANISED TILT BODY BOX TRAILER
WITH A BRAKE AXLE & HEAVY DUTY HANDBRAKE COUPLING !!!! CAPACITY 1500KG
- SIZE 8 FT X 5 FT
- CHECKER PLATE BODY - FLOOR FULLY WELDED TO CHASSIS 2.5MM PLATE
- SIDE PANELS - 300MM HIGH, 2.5MM FOLDING PLATE, DETACHABLE
- LONG DRAW BAR - 1600MM LONG - 50 X 100 X 3MM WITH D SHACKLE 3/8" & 10MM SAFETY CHAIN
- 50MM SQUARE TUBE UPRIGHTS 2.5MM THICK
- CHASSIS CROSS BARS - 50MM X 50MM SQUARE TUBE X 2.5MM
- ROPE RAILS 20MM ROUND TIE DOWN ALL ROUND
- AXLE - 50 X 50 X SQUARE AXLE BEAM, FORD BEARINGS L68149/10 & LM12749/10
- DISC BRAKED AXLE
- SUSPENSION - 7 LEAF SPRING, 45 X 8MM, EYE TO EYE
!!!!!HEAVY DUTY 1500KG WITH A HEAVY DUTY HAND BRAKE COUPLING !!!!
- COUPLING - 50MM BALL, NON-BRAKED, AUSTRALIAN STANDARD
- JOCKEY WHEEL - 6 INCH TOP WIND, LOAD 340KG (750LBS)
- ELECTRIC PLUG - 7 PIN FLAT
- SWING UP JOCKEY WHEEL
- TILT BODY TRAILER
- HOT DIP GALVANISED BODY
- 14" WHITE POWDER COATED RIMS
- 2.5MM FOLDING FRONT & REAR TAILGATE FLAT PLATE, REMOVABLE
- MUDGUARDS - CHECKER PLATE 2.5MM WITH SMALL TRIANGLE STEP-UP PLATFORM AT FRONT AND REAR
- LED TAIL LIGHTS WITH NUMBER PLATE LIGHT
- ATM 1500 KG
- TARE420KG
- MAX LOAD 1080KG
- 185 / 14 TYRE RIM
OVER ALL LENGTH- 4.4M WIDTH- 2.1M HEIGHT 0.8M
*****OPTIONAL EXTRA AVAILABLE CAGE FOR THIS UNIT SIZE - 600MM TALL, FRAME 30 X 30 X 1.5MM TUBE, 50 X 70 X 4MM MESH*****
|
