WELDER MST188X MIG STICK TIG 180 AMP
Click on image for larger photo
Product Code: 699188

BOSSWELD MST188X IS A LIGHTWEIGHT AND
PORTABLE MULTI PROCESS INVERTER BASED
WELDER GIVING, MIG,STICK AND TIG CAPABIL
Border Image Border Image
Shop Price: $829.00
Web Price: $829.00  inc tax

Availability: In Stock
Quantity:
Border Image Border Image

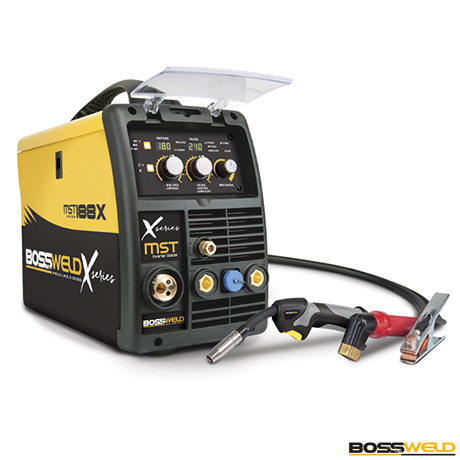

WELDER MST188X MIG STICK TIG 180 AMP

THE BOSSWELD MST 188X IS A LIGHTWEIGHT AND PORTABLE MULTI PROCESS INVERTER BASED WELDER THAT GIVES THE WELDER THE POSSIBILITY TO MIG,STICK AND TIG WELD FROM THE SAME MACHINE, MAKING IT THE IDEAL CHOICE FOR YOUR NEXT WELDING PROJECT.

FEATURES
- MULTI-PROCESS WELDER
- 180AMP
- SPOOL GUN READY
- SPOOL SIZE - 1KG & 5KG
- GAS / GASLESS OPERATION
- LCD DIGITAL DISPLAY
- 2T / 4T TRIGGER CONTROL
- DC TIG LIFT ARC FUNCTION
- STEPLESS CONTROL

SPECIFICATIONS
- PRIMARY INPUT POWER: 1 PHASE 240V 50-60 HZ +/-15%
- DUTY CYCLE @ 40OC: MIG/TIG/MMA 10% @ 180A
- OPEN CIRCUIT VOLTAGE: MIG 58.5V
- OUTPUT CURRENT RANGE:
- MIG: 40-180AMPS
- MMA / TIG: 10-180AMPS
- MIG: 37.5A
- TIG: 28.5A
- MIG/MMA: 15A
- TIG: 9.5A
- PROTECTION CLASS: IP21
- INSULATION CLASS: H
- WIRE DIAMETER RANGE: 0.6MM TO 0.9MM
- ELECTRODE DIAMETER RANGE: 1.6MM TO 4MM (IDEAL 2.6MM)
- THERMAL OVERLOAD: YES
- MINIMUM KVA: 8.5 KVA

INCLUDES
- MST 188X INVERTER WELDER
- 3 METRE ERGON BZ15 MIG TORCH
- 3 METRE TWIST LOCK ELECTRODE HOLDER? 3MT 200AMP EARTH CLAMP
- DRIVE ROLLERS: 1 X MILD STEEL / 1 X GASLESS
- 2MT GAS HOSE
- BOSSWELD TWIN GAUGE REGULATOR
- OPERATOR MANUAL
