WELDARC 145A STICK & TIG WELDER
Click on image for larger photo
Product Code: MC111-0

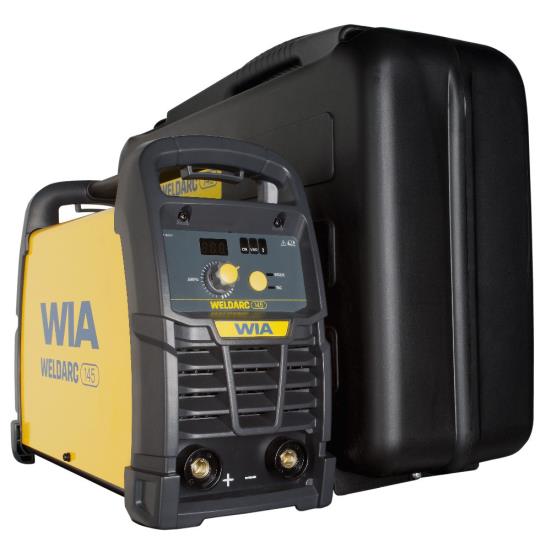

WELDARC 145A STICK & TIG WELDER
INC BLACK STORAGE BOX TO CONTAIN
POWER UNIT AND LEADS
Border Image Border Image
Shop Price: $489.00
Web Price: $489.00  inc tax
Shipping charges may vary and are subject to change based on product dimensions and destination.

Availability: In Stock
Quantity:
Weight: 10 KG
Border Image Border Image
WIA MC111-0 WELDARC 145 STICK & TIG WELDER

PACKAGE INCLUDES:

- HEAVY DUTY WORK CLAMP (3M)
- INDUSTRIAL TWIST LOCK ELECTRODE HOLDER (4M)
- PADDED SHOULDER STRAP
- CARRY CASE

FEATURES:

- SUITABLE APPLICATIONS - LIGHT FABRICATION, REPAIR & MAINTENANCE, BUILDING & CONSTRUCTION, FARMING
- WELDABLE MATERIALS - STEEL, STAINLESS STEEL AND CAST IRON
- 145 A SINGLE PHASE STICK/TIG WELDER
- 145 A AT 25.8 V 20% DUTY CYCLE
- PORTABLE ONLY 7KG
- DC LIFT ARC TIG START FOR SMOOTHER STARTING WITHOUT STICKING TO THE WORKPIECE.
- DIGITAL METERS EASY TO READ AND EASY TO ADJUST PARAMETERS
- POWER FACTOR CORRECTION SMOOTHS OUT THE ACTUAL INPUT CURRENT. MAXIMISES EFFICIENCY WHEN WELDING ON LONG LEADS OR FROM GENERATORS
- BUILT-IN THERMAL PROTECTION PREVENTS THE MACHINE FROM OPERATING BEYOND ITS SAFE THERMAL ZONE
- FAN-ON-DEMAND? COOLING FAN REDUCES NOISE, ENERGY USE AND CONTAMINATES
- ARC FORCE PROVIDES A MORE STABLE ARC AND PREVENTS ELECTRODE STICKING
- HOT START FOR BETTER, EASIER ARC STARTING
- VRD (VOLTAGE REDUCTION DEVICE)
- IP23S RATED PROVIDES EXTRA PROTECTION IN HARSH ENVIRONMENTS
- GENERATOR COMPATIBLE 7 KVA

SPECIFICATIONS:

- PRIMARY VOLTAGE - 240 VAC-50/60HZ
- RATED PRIMARY CURRENT - 8.5 AMPS
- MAX PRIMARY CURRENT - 19 AMPS
- RECOMMENDED GENERATOR POWER - 7 KVA
- SUPPLY PLUG - 10 AMP
- IP RATING - IP23S
- WEIGHT - 7KG
- WARRANTY - 3 YEARS
- STANDARDS COMPLAINCE - AS60974.1 & AS1674.2 (VRD)

STICK SPECIFICATIONS:

CURRENT RANGE -
- 25A/21V-145A/25.8V

RATED OUTPUT @ 40°C (10MIN) -
- 145A/25.8V @ 20%
- 74A/22.9V @ 60%
- 56A/22.2V @100%

- ELECTRODE SIZE RANGE - 2.0 - 3.2MM
- MATERIAL THICKNESS RANGE - WELDS UP TO 8MM STEEL PLATE, SINGLE PASS

TIG SPECIFICATIONS:

OUTPUT RANGE - 25A/11V-145A/15.8V

RATED OUTPUT @ 40°C (10MIN) -
- 145A/15.8V @ 20%
- 74A/12.9V @ 60%
- 56A/12.2V @ 100%
