Product Code:
PD-510

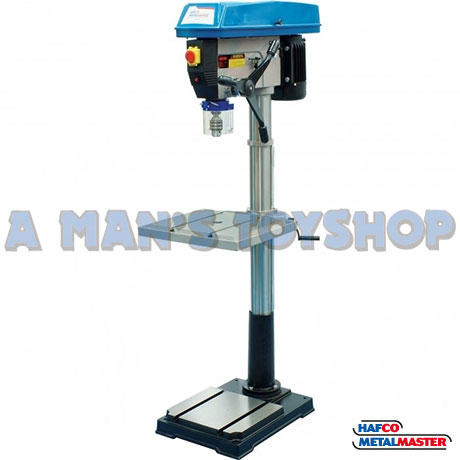

FLOOR DRILL PRESS MT4 TAPER CAPACITY
32MM - 12 SPEED 150RPM TO 2450RPM - T
SLOT TABLE - FAN COOLED MOTOR
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
PEDESTAL DRILL - BELT DRIVE
IDEAL FOR HOME WORKSHOP OR FARM USE
QUIET V-BELT DRIVE SYSTEM
DRILL CHUCK KEY HOLDER MOUNTED ON RHS OF MACHINE
ADJUSTABLE SAFETY DRILLING CHUCK GUARD WITH FLIP UP SCREEN
ONE PIECE CAST IRON DRILLING LEVER WITH COMFORT GRIPS
SAFETY MAGNETIC TYPE SWITCH
SAFETY MICRO SWITCH ON PULLEY GUARD
RACK & PINION TABLE HEIGHT ADJUSTMENT WITH LOCKING LEVER
THICK WALLED COLUMN ENSURING GREATER RIGIDITY
TABLE TILTS LEFT & RIGHT TO 45 DEGREES
DRILLING DEPTH STOP
WORK LIGHT MOUNTED UNDERNEATH DRILLHEAD TO PROVIDE DIRECT LIGHT ONTO WORKSPACE
T SLOTTED WORK TABLE
12 SPINDLE SPEEDS - 150, 240, 270, 330, 430, 470, 830, 1030, 1270, 1430, 1790, 2450 RPM
FAN COOLED COPPER WOUND 240V MOTOR
INCLUDES:
16mm KEYED DRILL CHUCK AND ARBOR
CHUCK KEY TO SUIT
DRILL DRIFT TOOL TO REMOVE DRILL CHUCK OR TAPER SHANK DRILLS
2.4HP ELECTRIC MOTOR
|
