DIVIDING HEAD 100MM CENTRE HEIGHT

 New and improved website Freight Free

Enquiry
DIVIDING HEAD 100MM CENTRE HEIGHT
Click on image for larger photo
Product Code: BS-0

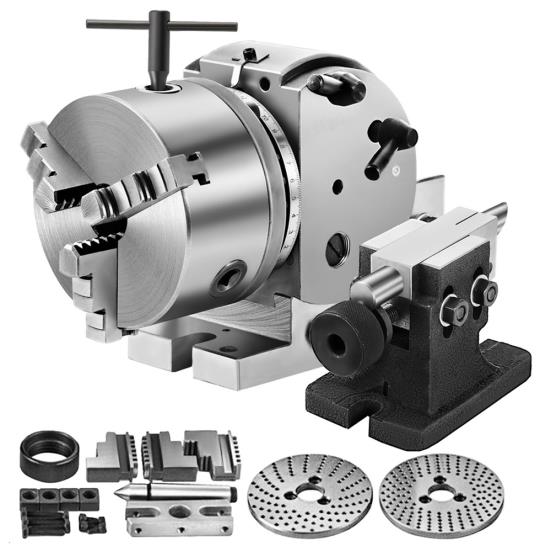

DIVIDING HEAD 100MM CETRE HEIGHT.
DESIGNED TO CARRY OUT ALL TYPES OF
GEAR CUTTING, PRECISION DIVIDING.
Border Image Border Image
Shop Price: $849.00
Web Price: $849.00  inc tax

Availability: In Stock
Quantity:
Weight: 180 KG
Border Image Border Image
DESCRIPTION:
MANUFACTURED IN TAIWAN

THE VERTEX DIVIDING HEAD IS A TOOL THAT IS USED TO DIVIDE A CIRCLE INTO EQUAL SPACERS. THE MOST COMMON USE IS IN THE ACCURATE MANUFACTURE OF SPLINES, GEARS AND KEY-WAYS THAT ARE REQUIRED TO BE AT A SPECIFIC ANGLE TO EACH OTHER.

THE VERTEX SEMI UNIVERSAL DIVIDING HEAD CAN BE TILTED THROUGH A FULL 90 DEGREES FROM HORIZONTAL TO VERTICAL MAKING IT A MUST WHEN MANUFACTURING BEVEL GEARS OR KEY-WAYS IN TAPERS.

FEATURES:
- THE VERTEX DIVIDING HEAD IS SUITABLE FOR DIRECT AND INDIRECT INDEXING
- HARDENED AND GROUND SPINDLE RIGIDLY HELD BETWEEN TAPER ROLLER BEARINGS
- IMPROVED DESIGN WITH SPINDLE SPIGOT NOSE FOR A MORE ACCURATE CHUCK MOUNT
- WORM IS HARDENED AND GROUND WITH RATIO BETWEEN WORM AND WORM WHEEL 40:1
- DIRECT INDEXING DESIGNED FOR QUICK DIVISIONS OF NO'S 2, 3, 4, 6, 8, 12 & 24
- THE HEAD CAN BE SWIVELLED FROM 10º BELOW HORIZONTAL TO 90º VERTICAL
- SLOTTED BASE ON DIVIDING HEAD & TAILSTOCK FOR USE WITH KEY STEEL TO ALIGN QUICKLY ON MACHINE

INCLUDES:
- BACKING PLATE SUITS 130MM FRONT MOUNT 3 JAW CHUCK
- DIVIDING PLATES
- TAILSTOCK

OPTIONAL ACCESSORIES:
- REPLACEMENT DIVIDING PLATES (D0015)

View Complete Range:
ENGINEER HAND TOOLS > DIVIDING HEADS
Video:
