IMPLEMENT JACK 4500KG H/DUTY WELD MOUNT

 New and improved website Freight Free

Enquiry
IMPLEMENT JACK 4500KG H/DUTY WELD MOUNT
Click on image for larger photo
Product Code: XY10000E

IMPLEMENT JACK 4500KG H/DUTY WELD MOUNT
SQUARE BODY 100MM X 100MM HEIGHT CLOSED
698MM OPEN 1041MM-SIDE WIND & EXTENDABLE
Border Image Border Image
Shop Price: $249.00
Web Price: $241.53  inc tax
Shipping charges may vary and are subject to change based on product dimensions and destination.

Availability: In Stock
Quantity:
Weight: 27 KG
Border Image Border Image

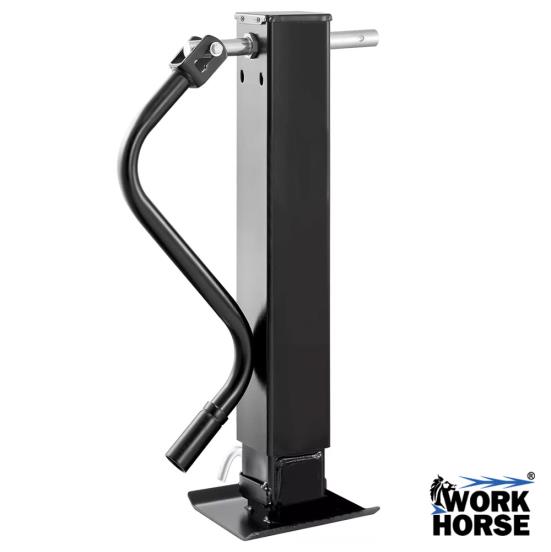

IMPLEMENT JACK 4500KG HEAVYDUTY WELD MOUNT LIFT OR SWIVEL MOUNT ARE AVAILABLE

HEAVY-DUTY, 100MM X 100MM SQUARE, DROP-LEG JACK INCLUDES CRANK AND HAS A SIDE-FACING PLUNGER PIN, AN EASY-TO-ACCESS GEARBOX AND 690MM RETRACTED HEIGHT. PERFECT FOR AGRICULTURAL, CONSTRUCTION, LIVESTOCK OR HEAVY-DUTY UTILITY APPLICATIONS.

FEATURES:
- PAINTED INNER AND OUTER TUBES ARE WEATHER RESISTANT
- GEARBOX IS EASY TO ACCESS FOR ROUTINE MAINTENANCE
- DROP LEG WITH SPRING RETURN INCREASES OVERALL EXTENSION FOR MAXIMUM ADJUSTABILITY
- PLUNGER PIN POSITIONED TO THE SIDE
- DIRECT-WELD DESIGN
- SIDEWIND CRANK INCLUDED FOR EITHER LEFT & RIGHT USE
- STANDARD FOOTPLATE INCLUDED SISE 210MM X 200MM

SPECS:
BRACKET HEIGHT:
- 27-2/5" RETRACTED
- 39-9/10" EXTENDED

- DROP-LEG EXTENSION TRAVEL: 343 mm
- EXTENSION HAS A SPRING LOADED PIN FOR 5 EXTENSION OPTIONS
- LIFT: 343 mm LIFTING RANGE 698mm TO 1041 mm
- TUBING WIDTH: 100MM X 100MM
- HANDLE RADIUS: 340MM
- FOOT PLATE SIZE 215MM X 200MM
- LIFT CAPACITY: 10,000 LBS
- STATIC CAPACITY: 12,000 LBS
- LIMITED 5-YEAR WARRANTY

DROP LEG JACK WITH STANDARD DISC FOOT, 13.5" ADDITIONAL DROP LEG EXTENSION, DROP LEG PULL PIN TO THE SIDE. INCLUDES CRANK
box size 700x320x220
