Product Code:
11180

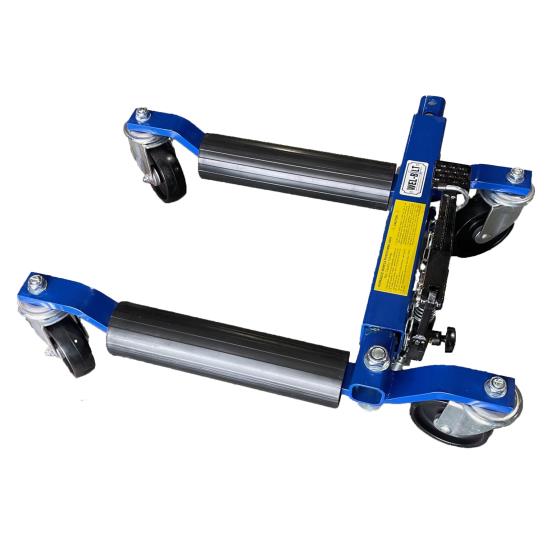

VEHICLE POSITIONING GO JACK 680KG CAP
HYDRAULIC FOOT LIFT 300MM WHEEL CAP
ALL STEEL. 100MM NYLON WHEELS (1 PIECE)
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
VEHICLE POSITIONING GO JACK 680KG 1 PIECE ONLY
DESCRIPTION:
- IDEAL FOR MOVING VEHICLES IN GARAGES, WORKSHOPS AND DEALERSHIPS
- HYDRUALIC PUMP
- 12" (300MM) WHEEL CAPACITY
- STEEL FRAME CONSTRUCTION
- STEEL ROLLERS (ADJUSTING RANGE 345MM-625MM)
- 4" NYLON/POLYURETHANE CASTORS
CAPACITY: 684KG (PER UNIT)
WHEEL CAPACITY: 300MM (12")
SAFETY PRECAUTIONS -
WARNING: FAILURE TO HEED THE FOLLOWING WARNINGS CAN RESULT IN PERSONAL INJURY AND/OR EQUIPMENT DAMAGE.THESE WARNINGS CANNOT COVER EVERY SITUATION, SO HAVE SAFETY FOREMOST IN YOUR MIND WHEN SETTING UP A JOB.
- READ, UNDERSTAND AND FOLLOW THE OPERATING INSTRUCTIONS AND THE ANSI B30.1 AND ASME PALD-1 SAFETY STANDARDS FOR JACKS. IF THE OPERATOR CANNOT READ ENGLISH, OPERATING INSTURCTIONS AND SAFETY PRECAUTIONS MUST BE READ AND DISCUSSED IN THE OPERATOR'S NATIVE LANGUAGE.
- WEAR EYE PROTECTION THAT MEETS THE REQUIREMENTS OF ANSI Z87.1 AND OSHA.
- INSPECT THE JACK BEFORE EACH USE; DO NOT USE THE JACK IF IT IS DAMAGED, ALTERED, OR IN POOR CONIDITION.
- TO PREVENT TIPPING, SET UP THE JACK ON A HARD, LEVEL SURFACE. SET VEHICLE PARKING BRAKE AND BLOCK TYRES.
- THE LOAD MUST NOT EXCEED THE RATED LIFTING CAPACITY OF THE JACK. LIFT ONLY DEAD WEIGHT.
- CENTER THE LOAD ON THE JACK SADDLE, BECAUSE OFF-CENTRE LOADS CAN DAMAGE SEALS AND CAUSE HYDRAULIC FAILURE.
- USE THE JACK FOR LIFTING PURPOSES ONLY. THIS JACK IS DESIGNED TO LIFT LOADS, NOT SUPPORT LOADS. IMMEDIATELY SUPPORT A LIFTED LOAD WITH JACK STANDS.
- STAY CLEAR OF LIFTED LOADS.
- USE ONLY APPROVED HYDRAULIC FLUID, SUCH AS CHEVRON AW HYDRAULIC OIL MV OR EQUIVALENT.
- THE JACK SHOULD BE USED ON HARD, LEVEL SURFACES
- THE WHEELS OF THE VEHICLE TO BE CHOCKED
- DO NOT PUT A PORTION OF YOUR BODY UNDER A VEHICLE SUPPORTED BY A JACK
- NO PERSON SHOULD REMAIN IN A VEHICLE THAT IS BEING JACKED
- DO NOT EXCEED THE WORKING LOAD LIMIT
OPERATING INSTRUCTIONS -
TO RAISE THE JACK, USE NARROW END OF JACK HANDLE TO TIGHTEN RELEASE VALVE CLOCKWISE (CW). INSERT HANDLE INTO SOCKET AND OPERATE PUMP. TO LOWER THE JACK, SLOWLY OPEN THE RELEASE VALVE KNOB BY TURNING IT COUNTERCLOCKWISE (CCW).
|
