Product Code:
6002

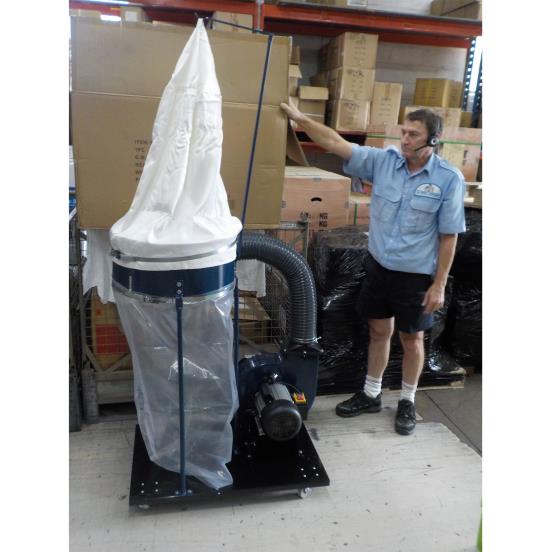

DUST EXTRACTOR 2HP, 250MM FAN, 500CFM
2 x 125MM INLETS, 495MM BAG DIAMETER 830
MM BAG HEIGHT ON WHEELS BASE 840X550MM
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
SPECIFICATIONS -
ELECTRICAL RATING - 240VAC/50HZ/1500W SINGLE PHASE
RPM - 3450
BAG DIMENSIONS - TOP=19-1/2" DIAM. X 30"L, BOTTOM=19-1/2" DIA. X 30-7/8"L
BAG FILTRATION RATION - 5 MICRONS
INTAKE - 4-3/8" ID (SCREEN AND FILTER)
EXHAUST DIAMETER - 4-1/2 INCH ID WITH SCREEN
ASSEMBLY -
1. PLACE CASTER (39) IN PLACE ON THE UNDERSIDE CORNER OF THE BASE PLATE (40). FOR ALL FOUR CORNERS OF THE CASTER INSERT ONE SCREW (5) THROUGH WASHER (21) DOWN INTO BASE PLATE AND THROUGH CASTER. THREAD ON NUT (38). REPEAT FOR REMAINING THREE CASTERS.
2. ATTACH THE FIRST COLLECTOR SUPPORT (29) TO THE BASE PLATE. LINE UP THE COLLECTOR SUPPORT WITH HOLES ON EDGE OF THE BASE PLATE. INSRET BOLT (16) DOWN THROUGH WASHERS (15, 14), BASE PLATE AQND SECURE IN PLACE WITH NUT (2).
3. REPEAT FOR SECOND COLLECTOR SUPPORT ON THE OPPOSITE EDGE OF THE BASE PLATE.
4. ATTACH THE THIRD COLLECTOR SUPPORT THROUGH THE INSIDE HOLES NEAR WHERE THE MOTOR BASE (41) WILL BE MOUNTED. INSERT BOLT DOWN THROUGH WASHERS AND BASE PLATE AND SECURE IN PLACE WITH NUT.
5. THE FAN HJOUSING (17) IS ATTACHED TO THE MOTOR (27) AND MOTOR BASE AS A ASINGLE UNIT. SECURE THE MOTOR BASE TO THE BASE PLATE (4) USING SIZ BOLTS, TWELVE WASHERS AND SIX NUTS.
6. SET THE OUTLET GASKET (19) ON TOP OF THE RECTANGULAR OPENING OF THE FAN HOUSING. SET THE OUTLET (20) ON TOP OF THE FAN HOUSING AND OUTLET GASKET. SLIDE WASHERS (21) ONTO BOLTS (22) AND THREAD INTO THE SIX HOLES IN THE LIP OF OUTLET, FAN HOUSING AND OUTLET GASKET. SECUIRE IN PLACE WITH NUTS.
7. CONNECT THE FILTER BAG SUPPORT (33) TO THE COLLECTOR SUPPORT AND COLLECTOR (30). THREAD IN BOTH BOLTS (16) THROUGH THE COLLECTOR SUPPORT AND THROUGH THE FILTER BAG SUPPORT AND INTO THE COLLECTOR (SEE FIGURE E)
8. SLIDE THE HOSE CLAMP (23) ONTO THE HOSE (24). SLIDE HOSE WITH HOSE CLAMP ONTO THE OUTLET. ONCE THE HOSE IS IN PLACE, TIGHTEN THE SCERW ON THE HOSE CLAMP UNTIL THE HOSE IS SECURELY FASTENED TO THE OUTLET. (SEE FIGURE D)
9. SLIDE THE HOSE CLAMP ONTO THE OTHER END OF THE HOSE. SLIDE THE TOP OPENING OF THE HOSE OVER THE DUCT IN THE COLLECTOR. TIGHTEN THE SCREW ON THE HOSE CLAMP UNTIL THE HOSE IS SECURELY FASTENED.
10. PLACE THE FILTER BAG (32) ON TOP OF THE COLLECTOR. ONCE THE FILTER BAG IS IN PLACE, ADJUST THE CLAMP SO THAT THE CLIP RESTS BETWEEN THE TEETH. PRESS THE CLAMP DOWN TO LOCK IN PLACE. EXTEND THE BAG SO THAT THE LOOP ON THE TOP HANGS ON THE FILTER BAG SUPPORT.
11. PLACE THE COLLECTION BAG (37) ON THE OBTTOM OF THE COLLECTOR AND SECURE IT WITH CLAMP (31).
12. ATTACH THE HANDLE (34) TO THE COLLECTOR WITH NUT (36) AND SCREW (35).
|
