Product Code:
HDBC20

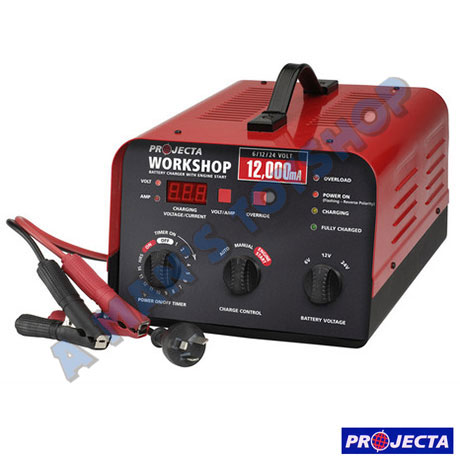

WORKSHOP 6/12/24V 20A* 12,000MA BATTERY
CHARGER MANUAL & AUTO
BATTERY CHARGER 6/12/24 VOLT START TIMER
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
MANUAL & AUTOMATIC
INPUT: 240V, 50Hz, 300W
- 12,000MA BATTERY CHARGER @ 6 AND 12 VOLT
- 12,000MA AT 6 VOLTS, 12,000MA AT 12 VOLTS, 7,700MA @24 VOLTS
- ENGINE START 3 CYCLES 5 MINUTES ON 20 MINUTES OFF
6 VOLT = 50A AT 3.6V
12 VOLT = 50 A AT 7.2V
24 VOLT = 25 A AT 14.4V
- LED CHARGE INDICATOR
- AUTOMOTIVE: VOLTAGE 6, 12, 24V, BATTERY SIZE: 450-1200CCA, CHARGE TIME: 6-15 HOURS
- MARINE: VOLTAGE 6, 12, 24V, BATTERY SIZE: 600 TO 1400MCA, CHARGE TIME: 8 TO 18 HOURS
- DEEP CYCLE: VOLTAGE: 6, 12, 24V, BATTERY SIZE: 65 TO 160AH, CHARGE TIME 8 TO 18 HOURS
FEATURES:
MULTI VOLTAGE OPERATION
SUITABLE FOR CHARGING 6, 12 OR 24 VOLT BATTERIES.
MANUAL CHARGE
WHEN USED BY EXPERIENCED OPERATORS, IT CAN BE USED TO DELIVER AN EQUALIZATION CHARGE TO BALANCE THE VOLTAGE IN THE BATTERY'S CELL.
AUTOMATIC CHARGE
LEAVE CONNECTED TO THE BATTERY WITHOUT THE RISK OF OVERCHARGING. THE CHARGER AUTOMATICALLY CONTROLS ITS OUTPUT WHEN THE BATTERY IS FULL AND MAINTAINS IT IN A FULLY CHARGED STATE.
0-14 HOUR TIMER
AUTOMATICALLY TURNS THE BATTERY CHARGER OFF AFTER SET TIME. CAN BE SET AT 60 MINUTE INTERVALS.
ENGINE START
IF YOU NEED TO GET GOING AND THE BATTERY IS FLAT, THEN THE ENGINE START WILL HELP YOU OUT. CONNECT THE CHARGER TO THE BATTERY, SET IT TO ENGINE START MODE FOR 5 MINUTES, THEN START YOUR ENGINE.
L.E.D. VOLTAGE/AMP DISPLAY
A VOLT METER DETERMINES THE BATTERY CHARGE LEVEL WHILE THE AMP METER DISPLAYS HOW MUCH POWER IS BEING DELIVERED INTO THE BATTERY.
THERMAL OVERLOAD/POLARITY PROTECTION
PREVENTS THE OUTPUT LEADS FROM SPARKING DUE TO ACCIDENTAL REVERSE CONNECTION OR SHORT CIRCUIT, INCREASING SAFETY.
|
