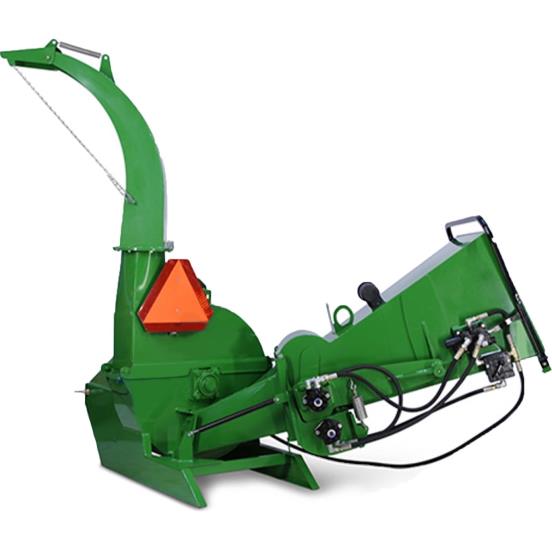

WOOD CHIPPER PTO HYDRAULIC DRIVE 150MM Enquiry Click on image for larger photo Product Code: BX62R WOOD CHIPPER PTO HYDRAULIC DRIVE 150MM HYDRAULIC FEED,635 X635MM HOPPER OPENING 3 POINT HITCH, 540RPM.60 TO 80HP TRACTOR Shop Price: $6,899.00 Web Price: $6,899.00  inc tax   Availability: In Stock Quantity: Weight: 500 KG Please enter a valid quantity Tweet PTO HYDRAULIC FEEDING WOOD CHIPPER - ONE OF THE BEST CHIPPERS AVAILABLE IN THE AFFORDABLE RANGE BUT STILL GOOD QUALITY. IDEAL HORSEPOWER REQUIRED - 60 TO 80HP, 540 RPM 3 POINT LINKAGE MOUNT IS SERIES 2 WITH POWER TAKE OFF OPERATION IDEAL HORSEPOWER REQUIRED IS 60-80HP NOTE: THIS UNIT IS SUPPLIED WITH A POWER TAKE OFF SHAFT FOR PTO OPERATION - DRIVE SYSTEM: DIRECT DRIVE, PTO WITH SHEARBOLT - HP REQUIREMENTS FOR MAXIMUM CAPACITY: 60-80HP - CHIPPER CAPACITY: 6" DIAMETER (MAXIMUM 12" SLAB) GREEN TIMBER ONLY, NOT IRONBARK OR ROSEWOOD - CHIPPER HOUSING OPENING: 6½" X 12" - ROTOR SIZE: 30" - FLYWHEEL THICKNESS: 25MM, DIAMETER: 740MM - NUMBER OF ROTOR KNIVES: 4 BLADES MADE OF CR12 STEEL MATERIAL CUTTING BLADE - KNIFE TYPE: HARDENED TOOL STEEL CR12 MATERIAL - SAWDUST MEASUREMENT THICKNESS - 6MM - ROTOR WEIGHT: 90KGS - BLADE SIZE: 240 X 60 X 9MM THICK CR12 STEEL CUTTING BLADE REVERSIBLE - FEEDING 3 FEED SETTINGS SYSTEM FEED: HYDRAULIC FEED FORWARD/NEUTRAL & REVERSE - MOUNTING SYSTEM: 3 POINT HITCH SERIES 2 - HOPPER OPENING: 580 X 580MM - DISCHARGE HOOD ROTATION: 360° - DISCHARGE HOOD HEIGHT: 74" - RATED RPM: 540-1000 - 4 ROTATING KNIVES HARDENED CR12 TOOL STEEL REVERSIBLE THE BX SERIES CHIPPER IS 45 DEGREE ANGLE FEEDING THE BX SERIES HAS HYDRAULIC FEEDING, ADJUSTABLE SPEED, STOP, FORWARD AND REVERSE FUNCTION THE BX62R HAS AN F TYPE FLANGE HOUSING WITH COLLARED BEARING FEEDING SYSTEM ROLLERS ARE 230MM LONG (X 2) BEARING INFORMATION: FLY WHEEL SHAFT BEARING UCF210 X2 ROLLER BEARING(UP) UCF210 X2 ROLLER BEARING(UNDERNEATH) UCP208 X2 SHIPPING DIMENSION- 910MM X 890MM X 1050MM - 750MM X 1040MM X 750MM View Complete Range: FARM & GARDEN EQUIP > WOOD CHIPPERS/CUTTERS* TRACTOR ATTACHMENTS > WOOD CHIPPERS/ CUTTERS* Video:
