Product Code:
11173-A

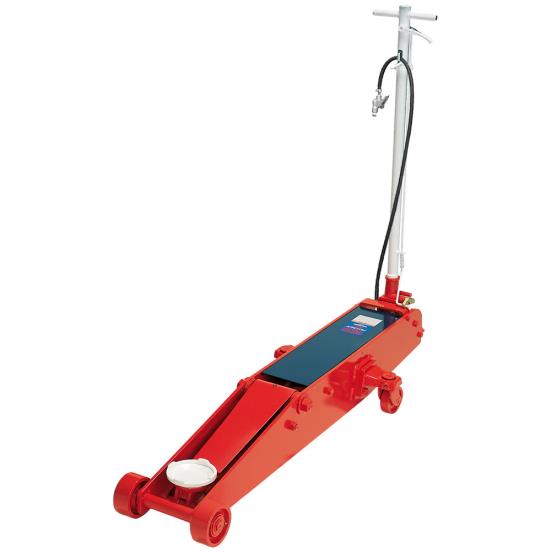

JACK FLOOR AIR HYDRAULIC LIFT 10 TON
AIR PRESSURE: 80-120 PSI. LONG FRAME
STYLE LIFTING RANGE: 160MM TO 560MM
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
10-TON AIR/HYDRAULIC SERVICE FLOOR JACKS
- BRING THE VERSATILITY OF AIR-ASSIST OPERATION TO YOUR SHOP?S LIFTING TASKS. THE 10-TON MODEL CAN ALSO BE OPERATED MANUALLY, WHEN SHOP AIR IS NOT AVAILABLE.
- HUGE FRONT WHEELS MOUNTED IN BEARINGS PROVIDE TROUBLE-FREE SERVICE LIFE. RUGGED STEEL FRAME MEMBERS.
- REAR SWIVEL CASTERS MAKE SPOTTING THE JACK EASY. SPRING-LOADED HANDLE MAY BE LOCKED IN THREE POSITIONS, FROM HORIZONTAL TO VERTICAL.
10-TON AIR/HYDRAULIC SERVICE JACK. WEIGHT 129KG
AIR HOSE HAS NITTO FITTING & IS 1800MM LONG
SPECIFICATIONS:
SADDLE DIAMETER: 190MM
OVERALL REACH: 2280MM
FRAME HEIGHT: 325MM
HANDLE LENGTH: 1050MM
MIN HEIGHT 160MM - MAX HEIGHT 560MM
SAFETY PRECAUTIONS -
WARNING: FAILURE TO HEED THE FOLLOWING WARNINGS CAN RESULT IN PERSONAL INJURY AND/OR EQUIPMENT DAMAGE.THESE WARNINGS CANNOT COVER EVERY SITUATION, SO HAVE SAFETY FOREMOST IN YOUR MIND WHEN SETTING UP A JOB.
- READ, UNDERSTAND AND FOLLOW THE OPERATING INSTRUCTIONS AND THE ANSI B30.1 AND ASME PALD-1 SAFETY STANDARDS FOR JACKS. IF THE OPERATOR CANNOT READ ENGLISH, OPERATING INSTURCTIONS AND SAFETY PRECAUTIONS MUST BE READ AND DISCUSSED IN THE OPERATOR'S NATIVE LANGUAGE.
- WEAR EYE PROTECTION THAT MEETS THE REQUIREMENTS OF ANSI Z87.1 AND OSHA.
- INSPECT THE JACK BEFORE EACH USE; DO NOT USE THE JACK IF IT IS DAMAGED, ALTERED, OR IN POOR CONIDITION.
- TO PREVENT TIPPING, SET UP THE JACK ON A HARD, LEVEL SURFACE. SET VEHICLE PARKING BRAKE AND BLOCK TYRES.
- THE LOAD MUST NOT EXCEED THE RATED LIFTING CAPACITY OF THE JACK. LIFT ONLY DEAD WEIGHT.
- CENTER THE LOAD ON THE JACK SADDLE, BECAUSE OFF-CENTRE LOADS CAN DAMAGE SEALS AND CAUSE HYDRAULIC FAILURE.
- USE THE JACK FOR LIFTING PURPOSES ONLY. THIS JACK IS DESIGNED TO LIFT LOADS, NOT SUPPORT LOADS. IMMEDIATELY SUPPORT A LIFTED LOAD WITH JACK STANDS.
- STAY CLEAR OF LIFTED LOADS.
- USE ONLY APPROVED HYDRAULIC FLUID, SUCH AS CHEVRON AW HYDRAULIC OIL MV OR EQUIVALENT.
- THE JACK SHOULD BE USED ON HARD, LEVEL SURFACES
- THE WHEELS OF THE VEHICLE TO BE CHOCKED
- DO NOT PUT A PORTION OF YOUR BODY UNDER A VEHICLE SUPPORTED BY A JACK
- NO PERSON SHOULD REMAIN IN A VEHICLE THAT IS BEING JACKED
- DO NOT EXCEED THE WORKING LOAD LIMIT
OPERATING INSTRUCTIONS -
TO RAISE THE JACK, USE NARROW END OF JACK HANDLE TO TIGHTEN RELEASE VALVE CLOCKWISE (CW). INSERT HANDLE INTO SOCKET AND OPERATE PUMP. TO LOWER THE JACK, SLOWLY OPEN THE RELEASE VALVE KNOB BY TURNING IT COUNTERCLOCKWISE (CCW).
SHIPPING DIMENSION- 1550MM X 550MM X 300MM
|
