L682

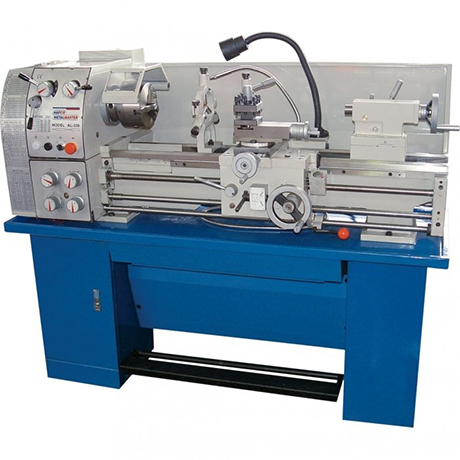

METAL LATHE 300 X 900MM & CAB STAND FOOT
18 SPINDLE SPEEDS FROM 65 TO 1810RPM.
POWERED LONGITUDINAL AND CROSS FEEDS.
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
MODEL: AL-336
DIGITAL READOUT SYSTEM FITTED: OPTIONAL
QUICK CHANGE TOOLPOST FITTED: OPTIONAL
COOLANT SYSTEM: YES
TOOL HEIGHT TO SUIT: 12MM
DISTANCE BETWEEN CENTRES: 900MM
SWING OVER BED: 300MM
SWING OVER CROSS-SLIDE: 178MM
SWING IN GAP: 450MM
CENTRE HEIGHT: 150MM
SPINDLE BORE: 38MM
SPINDLE NOSE SIZE OR TYPE: D1-4 CAMLOCK
BED WIDTH: 180MM
HEADSTOCK SPINDLE TAPER: 5METRE
TAILSTOCK TAPER: 3METRE
CROSS SLIDE TRAVEL: 170MM
COMPOUND SLIDE TRAVEL: 75MM
LEADSCREW: IMPERIAL
CROSS FEED RANGE (X-AXIS): 0.02 - 0.33MM/REV
LONGITUDINAL FEED RANGE (Z-AXIS): 0.07 - 1.29MM/REV
METRIC THREAD STEPS & PITCH RANGE: 32 (0.4 - 7MM)
IMPERIAL THREAD STEPS & TPI RANGE: 36 (4 - 60TPI)
3 JAW CHUCK DIAMETER: 160MM
4 JAW CHUCK DIAMETER: 200MM
SPINDLE STEPS / SPEED RANGE: 9 (75 - 1400RPM)
MOTOR POWER: 1.5KW / 2HP
VOLTAGE: 240VOLTS
DESCRIPTION:
THIS NEW & IMPROVED AL-336 QUALITY METAL TURNING LATHE AND NOW INCLUDES A COOLANT SYSTEM & FOOT BRAKE FOR THE SERIOUS ENTHUSIASTIC HOME MODEL ENGINEER, GENERAL MAINTENANCE AND SMALL WORKSHOPS. FEATURING A PRECISION GROUND, INDUCTION HARDENED BED, FULLY GEAR DRIVEN SPINDLE WITH HARDENED AND GROUND GEARS WITH A SPEED RANGE OF 65 - 1810RPM, SELECTABLE VIA THE FRONT OF HEADSTOCK MOUNTED GEAR SELECTION LEVERS.
2HP SINGLE PHASE 240 VOLT MOTOR IS SUPPLIED ON MACHINE, TAPER ROLLER SPINDLE BEARINGS, RANGE OF CROSS AND LONGITUDINAL FEED SPEEDS SELECTED ON A SEPARATE GEARBOX, THREAD CHASING DIAL, CHUCK GUARD WITH SAFETY INTERLOCK, SPLASH GUARD AND WORK LAMP.
SUPPLIED WITH A LARGE RANGE OF STANDARD ACCESSORIES INCLUDING A 150MM(6") 3 JAW SELF CENTRING CHUCK, 200MM(8") 4 JAW INDEPENDENT CHUCK, FACE PLATE AND DEAD CENTRES. 5 TO 3 MT REDUCTION SLEEVE, STEADY REST, FOLLOW REST, STANDARD TOOL POST, FLOOR STAND WITH A SWARF TRAY. CHANGE GEARS AND TOOLBOX WITH MAINTENANCE TOOLS.
FEATURES:
- GEAR DRIVEN HEADSTOCK FOR QUICK CHANGE OF SPINDLE SPEEDS
- FOOT OPERATED SPINDLE BRAKE WITH SAFETY CUT OUT SWITCH
- SLIDE OUT FRONT SWARF TRAY FOR EASY CLEANING
- COOLANT PUMP SYSTEM WITH FLEXIBLE HOSE & NOZZLE
- PRECISION V-BEDS ARE INDUCTION HARDENED AND GROUND, INCORPORATED WITH RIGID WEBBED CASTINGS
- CHANGE GEARS FOR METRIC AND IMPERIAL THREAD CUTTING
- ADJUSTABLE TAPER ROLLER BEARINGS SUPPORT THE SPINDLE
- SADDLE HAND WHEEL MOUNTED ON RIGHT SIDE OF APRON REDUCING SWARF CONTACTING THE HAND
- INCHING BUTTON IS INCORPORATED ON THE CONTROL PANEL FOR CONVENIENT SPINDLE SPEED SELECTION
- QUICK-ACTION GEARBOX FOR THREAD CUTTING AND AUTO FEEDING
- D1-4 CAMLOCK SPINDLE FOR QUICK AND ACCURATE CHUCK REMOVAL AND SAFE REVERSE DIRECTION TURNING. ISO STANDARD
- EXTERNAL ADJUSTABLE CROSS FEED LEAD-SCREW NUT
- BED WIPERS ON SADDLE
- REMOVABLE GAP BED-WAY FOR LARGER DIAMETER JOBS
- DUAL CALIBRATED DIALS (EXCEPT FOR SADDLE HAND-WHEEL)
- CHUCK GUARD FITTED WITH SAFETY MICRO SWITCH
- CHUCK & CHANGE GEAR GUARDS ARE FITTED WITH MICRO SWITCHES
INCLUDES:
- FOOT BRAKE SYSTEM
- COOLANT PUMP SYSTEM
- SLIDE OUT FRONT SWARF TRAY
- WORK LIGHT WITH FLEXIBLE ARM
- 3-JAW CHUCK WITH REVERSE JAWS
- 4-JAW CHUCK
- FACE PLATE
- FIXED STEADY
- TRAVELLING STEADY
- CHANGE GEARS
- DEAD CENTRE
- THREAD-CHASING DIAL
- REAR SPLASH GUARD & SWARF TRAY
- SAFETY CHUCK GUARD
- CABINET STAND
- SPANNERS
- TOOL BOX
- INSTRUCTION BOOKLET
|
