TRAILER SOCKET & PLUG SET 50 AMP 2 PIN

 New and improved website Freight Free

Enquiry

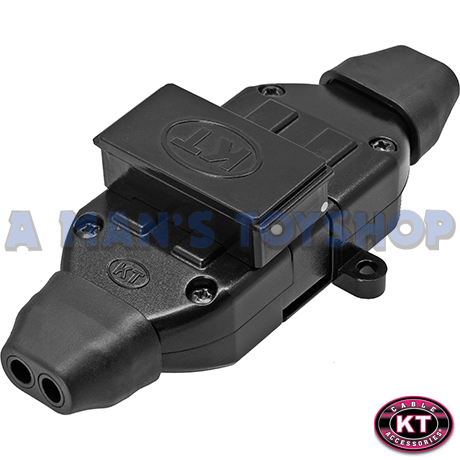

TRAILER SOCKET & PLUG SET 50 AMP 2 PIN
Click on image for larger photo
Product Code: KT70027

50AMP 2 PIN, TRAILER PLUG & SOCKET.
SUITS CABLE: 8MM2 (8B&S)
NO CRIMPING REQUIRED.
Border Image Border Image
Shop Price: $39.00
Web Price: $39.00  inc tax

Availability: In Stock
Quantity:
Weight: 0.18 KG
Border Image Border Image
SPECIFICATIONS
- POLYCARBONATE HOUSING (UV PROTECTED)
- PHILLIPS HEAD SCREWS
- AMPERAGE: 50AMPS
- SILVER PLATED COPPER PINS
- SPRING LOADED DUSTPROOF COVER (ON SOCKET ONLY)
- REGISTERED DESIGN

THE ALL NEW 50AMP 2 PIN TRAILER PLUGS & SOCKETS ARE THE
PERFECT SOLUTION FOR PROVIDING POWER TO FRIDGES AND OTHER
APPLIANCES FROM YOUR VEHICLE OR CARAVAN WHEN REQUIRING A
50AMP POWER CONNECTION.

THE KT 50AMP 2 PIN TRAILER PLUGS AND SOCKETS ARE THE
FIRST OF THEIR KIND, SERVING A SIMILAR PURPOSE TO THE POPULAR
?ANDERSON PLUG? WITHOUT THE NEED FOR CRIMPING.

EACH SOCKET IS FITTED WITH A SPRING LOADED DUSTPROOF AND
SPLASHPROOF COVER TO PROTECT INTERNAL PINS AND WIRING WHILE
THE CONNECTOR IS NOT IN USE.

INDIVIDUAL AND TWIN PACKS ARE AVAILABLE IN THIS RANGE.

INSTRUCTIONS FOR USE:
LOOSEN ALL 4 SCREWS IN THE WIRE ENTRIES. STRIP CABLE
APPROXIMATELY 10MM AND FEED INTO THE POSITIVE & NEGATIVE
WIRE ENTRIES. POSITIVE (RED) AND NEGATIVE (BLACK).
TIGHTEN ALL SCREWS SECURELY ENSURING NO WIRES ARE
EXPOSED OUTSIDE OF THE CONNECTOR WIRE ENTRIES. REPLACE
THE OUTER CASING AND TIGHTEN THE 2 SCREWS.
IT IS ALSO RECOMMENDED TO USE A FUSE INLINE WITH ONE OF
THE CIRCUITS.
